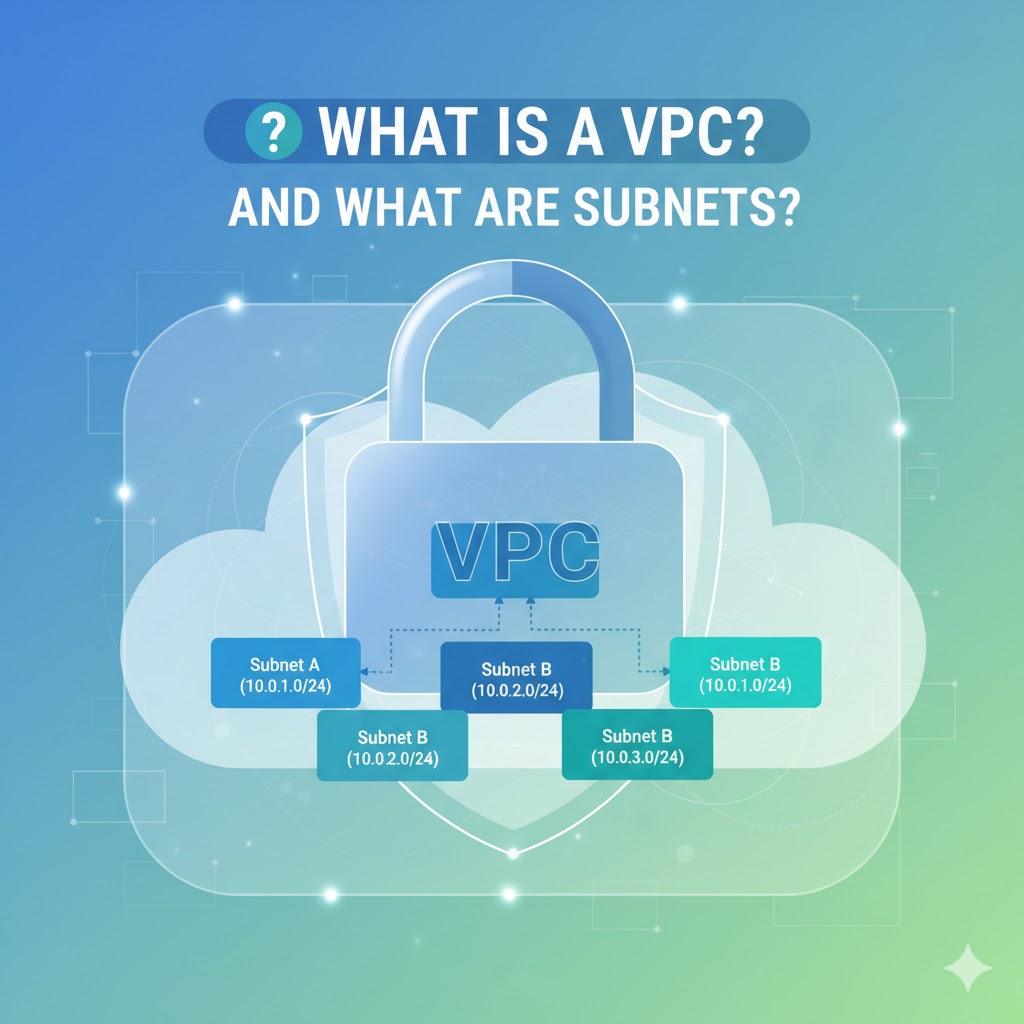

What Is a VPC and What Are Subnets?

If you’re new to cloud networking, VPC and subnets can sound scary. Good news: they’re just ways to carve out and organize your own private slice of a cloud provider’s network so your apps can talk to each other (and the internet) safely.

Quick Definitions

VPC (Virtual Private Cloud): Your own isolated network inside a cloud provider (like AWS, Azure, or GCP). Think of it as a private neighborhood with your rules, addresses, and gates.
Subnet (Sub-network): A smaller segment inside your VPC. Imagine dividing your neighborhood into separate streets or blocks. Each block has its own address range and purpose.

Why Use a VPC?

Isolation & Security: Your resources (servers, databases, containers) live in a private space.
Control: You choose IP address ranges, routing rules, and access paths.
Scalability: Easily add more subnets, gateways, or routes as you grow.
Compliance: Keep sensitive systems private while exposing only what’s needed.

How IP Addresses Fit In (CIDR Blocks)

When you create a VPC, you choose an IP range using CIDR notation (e.g., 10.0.0.0/16).

That example gives you ~65,000 private IPs to split among subnets.
A subnet might be 10.0.1.0/24 (about 256 IPs) and another 10.0.2.0/24, and so on.

Tip: Use private ranges like 10.0.0.0/8, 172.16.0.0/12, or 192.168.0.0/16.

Public vs. Private Subnets (The Most Common Pattern)

Public Subnets:
- Have a route to the internet via an Internet Gateway (IGW).
- Used for resources that must be reachable from the internet (e.g., a public web server or load balancer).
Private Subnets:
- No direct internet route.
- Used for internal components like databases, app servers, or caches.
- If they need outbound internet (for updates), they go through a NAT Gateway/Instance in a public subnet.

Analogy: Public streets have gates that open to the outside world. Private cul-de-sacs are closed off—residents can go out through a guarded exit (NAT), but outsiders can’t come in directly.

Key Pieces that Make It Work

Route Tables: Maps that tell traffic where to go (e.g., “internet-bound traffic uses IGW”).
Internet Gateway (IGW): The door from your VPC to the public internet (for public subnets).
NAT Gateway/Instance: Lets private resources initiate outbound internet access without being directly reachable from the internet.
Security Groups: Instance-level firewalls (stateful). You allow inbound/outbound rules like “allow HTTP from load balancer.”
Network ACLs (NACLs): Subnet-level rules (stateless). Often used as an extra layer of control.

Simple Example

Let’s say you host a basic web app:

VPC: 10.0.0.0/16
Public Subnet:10.0.1.0/24
- Contains a load balancer and a NAT Gateway
- Route table points internet traffic to the IGW
Private Subnet:10.0.2.0/24
- Contains application servers and a database
- Route table sends outbound traffic to the NAT Gateway (no direct internet)

Flow: Users → Load Balancer (public subnet) → App Servers (private) → Database (private). App servers can fetch updates from the internet via NAT, but the database stays fully private.

Designing a VPC in 5 Steps

Pick a CIDR range big enough for growth (e.g., 10.1.0.0/16).
Plan subnets by role and availability zone (e.g., public 10.1.1.0/24, private 10.1.2.0/24).
Create route tables and attach them to the right subnets.
Add gateways: IGW for public access, NAT for private outbound access.
Harden with security: Security groups for instances; NACLs for subnet policies.

Common Gotchas (and How to Avoid Them)

Overlapping IPs: Don’t overlap with on-prem networks if you plan a VPN later.
Too-small subnets: Leave room for scaling; /24 is a friendly default for many teams.
Missing routes: If something can’t connect, check the subnet’s route table first.
Over-permissive rules: Start tight (least privilege) and open only what’s needed.

TL;DR

A VPC is your private cloud network. Subnets are the organized slices within it—usually split into public (internet-facing) and private (internal-only). With the right routes, gateways, and security rules, you get a safe, scalable foundation for your apps.
